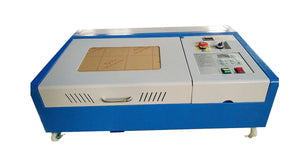

HQ3020 Co2 40W Desktop Laser

HQ3020 Co2 40W Desktop Laser

  • £1,964.00


  This indicative price includes Import Clearance, Customs Duties, VAT and Delivery to UK mainland.

Deliveries to N Ireland/Ireland & North of Scotland may incur added costs.

Please contact mike@lasercutdesigns.co.uk  tel+44 (0)7428871162
for up to date pricing.


The Laser comes with 1 half day Setup and Training Class at Laser Cut Designs premises or at your premises within



Technical Index:

  • Laser power: 40W (OPTIONAL)
  • Laser Type: CO2 Glass-tube laser
  • Power supply: AC220V +/- 10%/AC110V+/- 10%, 50Hz
  • Tube Trigger Volt: 20KV
  • Tube Operating Volt: 15KV
  • Current: 0~22MA
  • Engraving size: 300*200mm (11.81*7.87")
  • Engraving speed: 0~350mm/s (0~13.8 in./s)
  • Cutting speed: 0~35mm/s (0~1.38 in./s)
  • Platform:  lifting platform / fixed platform (up to 10 cm)
  • Laser Tube Life: 1000~1300 Hours
  • cutting character: Letter: 1x1mm (0.04*0.04")
  • Operating Temperature: 5~35 degree Celsius
  • Machine Weight: 25kgs
  • Resolution Ratio: <1000dpi
  • Control Configuration: DSP
  • System Environment: WINDOWS2000/WINDOWS XP/Vista/Win7
  • Software Supported: MoshiDRAW software (Both NewlyDraw and NewSea fuction)
  • Type of Cooling: water-cooling and protection system
  • Graphic Format Supported: BMP/JPG/JPEG/WMF/EMF/PLT
  • Motor Type: Stepper Motor
  • Water-break protection: Yes
  • Gross Weight: 40 kgs
  • Machine Dimension: 900*500*250mm (35*20*10")
  • Packing: wooden box package
  • Packing Dimension: 970*670*470mm (38.2*26.3*18.5")

 Applicable Materials:

  • Nonmetal materials: such as rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wood, marble, China, paper, garment, jade article, glass, shell etc.

 Applicable Industry:

  • Cutting, engraving, through-carved, hole drilling on wood and bamboo, acrylic, craft and gift, crystal, marble and granite, ceramic, glass and other
  • non-metal materials.
  • It is widely used in electronic, craft and gift, advertising industries.



Video:



https://youtu.be/QQO_wI0zvdE
