HQ1610 Laser Engraver Cutter
This indicative price includes Import Clearance, Customs Duties, VAT and Delivery to UK mainland.
Deliveries to N Ireland/Ireland, North of Scotland
or Europe will incur added costs.
Please contact mike@lasercutdesigns.co.uk
tel+44 (0)742 8871162 for up to date pricing.

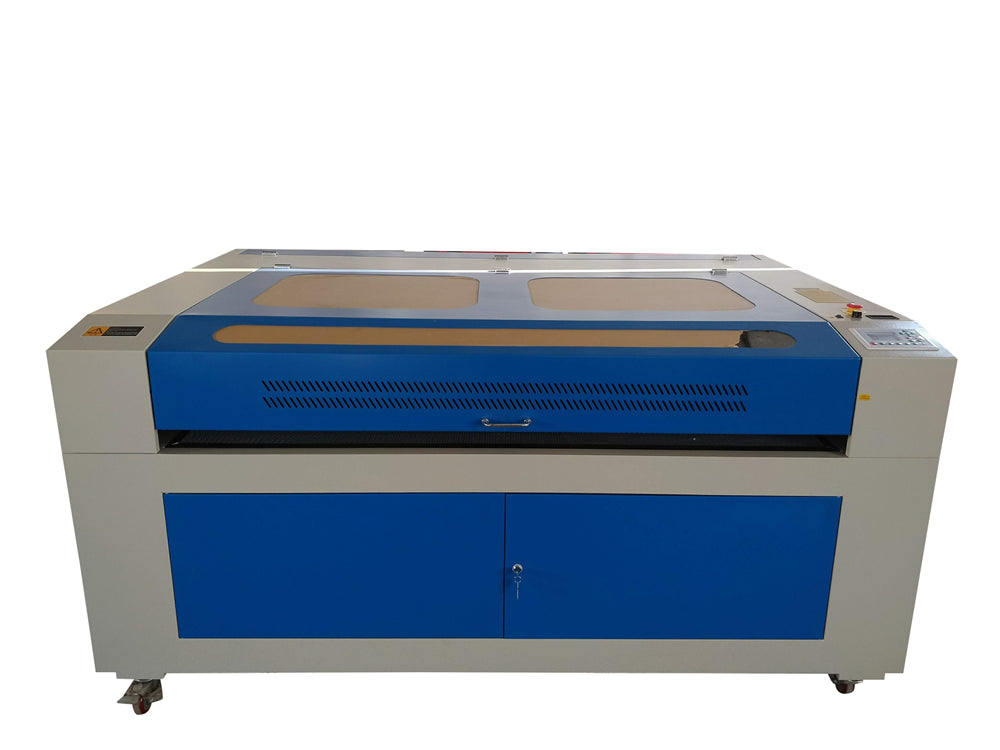

This industrial cabinet style Laser is a excellent upgrade to any desktop or entry level Laser machine & sports a large motorised lift table. The bed size is 1600x1000mm & the Laser Power is optional. This machine is ideal for Cutting & Engraving a vast range of mediums from Wood/MDF to Acrylics and Leather.
The Laser comes with 1 half day Setup & Training at Laser Cut Designs premises or at your premises within 150 mile radius of Swindon.
Options
Rotary Attachment = £280
Water Chiller CW5000 = £450
Auto Focus = £140
Technical Index:
Laser power: 80/100W (OPTIONAL)
Laser Type: CO2 Sealed-off Glass-tube laser
Power supply: AC 110V-220V+10% /50-60Hz
Max. Engraving size: 1600 * 1000mm
Engraving speed: 0-60,000mm/min
Cutting speed: 0-30,000mm/min
Platform: Up-down platform/Fixed platform
Locating Precision: <0.01mm
Repeat locating precision: 0.01mm
Min. shaping character: Character: 2*2mm, Letter: 1*1mm
Driving System: Stepper Motor
Cooling System: water-cooling and protection system
Water-break protection: Yes
Graphic Format Supported: CorelDraw, AutoCAD, Photoshop
File Format Supported: BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG etc
Auto Feeding System: Yes, continuous cutting and engraving.
Machine size: 2080*1430*1000mm
Packing size: 2190*1540*1120mm
Gross weight: 350kgs
Product Feature:
Smooth edge cutting, without ripple.
Unibody frame design makes machine runs stable and quiet.
Simple operation, random cutting/ engraving sequence and selectable level of processing, Part or whole output one-time.
Laser power, speed and focal setting can be flexible.
Applicable Industry:
Leather and textile process industry. Cutting, engraving, through-carved, hole drilling on fabric, garment, leather,
PU, through-carved and computerized embroidery.
